EdelWasser countertop water purification system with unique 5-stage filter continuously saves you money on bottled water and energy usage while protecting your health and the environment. Compact and easy to install, our wireless smart technology eliminates impurities from your water using a reverse osmosis system designed to meet, and exceed, your quality standards. Allow our cutting-edge technology do the dirty job of keeping your water pure, healthy and clean.
CLEAN WATER = BETTER QUALITY OF LIFE
Having access to pure, clean water for drinking, washing produce and cooking is essential for good health. Anytime you are drinking or cooking with water from Zepter International’s EdelWasser system, that’s an investment in yourself that everyone should make.
ADVANTAGES & BENEFITS:
Provides you and your family drinking water filtered of all impurities;
Closed tank prevents secondary pollution and provides extra sanitary protection;
Antibacterial System in the water tank inhibits the micro-organism propagation;
Energy Saving, (no electrical power, just water pressure);
Environmentally Friendly, (it takes 1000 years for a plastic bottle to disintegrate);
Improve your health and skin by drinking and washing with water free from impurities.
Economical: No more expensive bottled water.
IMPORTANT NOTE:
Installation and service of purchased product should be carried out by the Customer on their own or with local plumber or hire local company which provides such services – on customer cost. These activities should be carried out according to the Instruction Manual delivered with product.

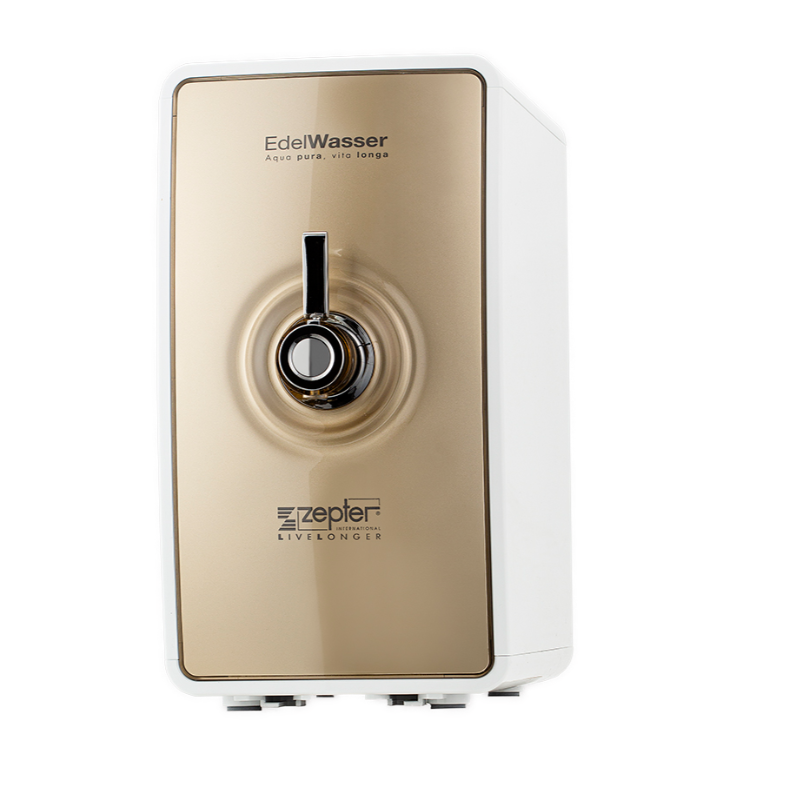

ITEM CODE: PWC-670-GOLD
PRODUCT NAME: EdelWasser Gold
GROSS WEIGHT [KG] 6
NET WEIGHT [KG] 4.5
APPLICATION: For home use. A device for water filtration by reverse osmosis.
PRODUCER: HOME ART. & SALES SERVICES AG , Sihleggstrasse 23 , 8832 Wollerau-Switzerland
DIMENSIONS: 200 mm (width) x 390 mm (depth) x 370 mm (height)
COLOR: Gold
WORKING TEMPERATURE: From 5ºC to + 35ºC
MAXIMUM DAILY WATER PRODUCTION VOLUME: 76,8 l/d - 112 l/d (for conditions: water temperature 25 degC, 138 kPa / 1,34 bar/20 psi / 344,74 kPa / 3,45 bar / 50 psi)
PROTECTION: Float valve (cutting off water filtration)
VOLTAGE: NOT APPLICABLE
FILTER REPLACEMENT FREQUENCY
Recommended term of replacement, counted from the date of installation: PWC-670-01 NEO SENSE - mechanical filter - every 6 months PWC-670-02 INNO SENSE – mechanical-carbon filter - every 18 months PWC-670-03 RO membrane filter 20 GPD - every 20-24 months PWC-670-09 Hygienic filter – every 20-12 months The table shows only approximate, estimated series of exchanges not their warranty period. To ensure the most optimal filtration you may need to replace filters with greater frequency. Speed and quality of the filtration (the yield of water) is mainly dependent on water pressure, temperature and quality of the filtered water. Thus, reverse osmosis system always generate a recoil water. For EDELWASSER the ratio is provided 4:1 and in case of low pressure on the network even 6:1.
COMPOSITION
Service and installation manual The device (with filters Neo-sense, reverse osmosis and Inno-sense) Elbow (1/4 inch white) - 4 pieces Clamp into the drain - 1 piece Water hoses (double enclosure, ¼ inch) - 5m Adapter ½ (valve1/4) - 1 piece Hygienic filter – 1 piece Band clips x 2
MONTAGE
Installation and service of purchased product should be carried out by the Customer on their own or with local plumber or hire local company which provides such services – on Customer cost. These activities should be carried out according to the manual delivered with product. The manual is also available in section 'Presentation'. EDELWASSER, the device for purifying water, is designed to be mounted on the worktop. Installation, operation, maintenance and repair should be performed only by manual instruction. We recommend preparing the installation site: • The distance between the place of connection and the place of installation of the device should not exceed 1.5 m • The distance from the source of water should not exceed 3 m. • The distance from the outflow of consumed water should not exceed 3 m • The dimensions of the installation site should be consistent with the dimensions of the EDELWASSER. It is recommended to install the device near the sink to make the inlet and outlet water hoses easily accessible. Note: Depending on the installation place and technical possibilities of connecting it to the drainage system, it may be necessary to drill a hole, e,g. in the kitchen worktop. Therefore, any additional work to prepare the site and infrastructure for installation /connection of the filter (e.g. specialized drilling of holes in stone, marble or other tops, adaptation of the drainage system, installation of independent water supplies, securing additional connections and valves) must be predicted by the customer.
MADE IN Korea
WARRANTY 2 years
CERTIFICATIONS/DECLARATION: Declaration of Conformity concerning the Regulation (EC) Nº1935/2004 on materials and articles intended to come into contact with food.
